READY TO GO, READY TO GROW.

Introducing our NEW 3-Phase Modular UPS Systems.

3phase rack

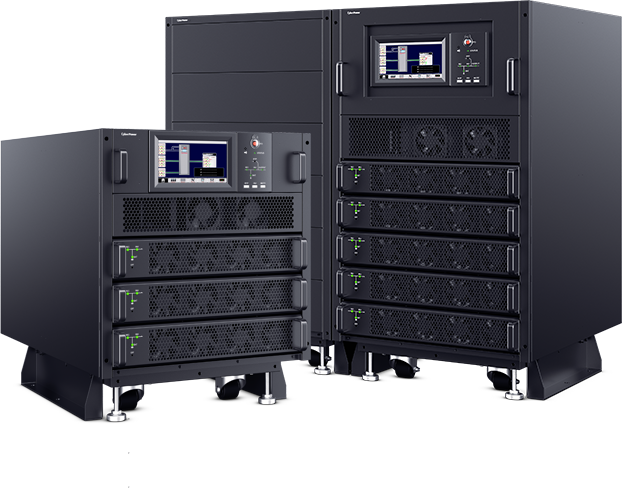

—PRODUCT OVERVIEW

Scalable 3-Phase power protection for mission-critical applications.

CyberPower's online double conversion, 3-Phase Modular UPS systems bring flexibility and efficiency to 3-Phase power protection. The modular design can be easily installed, customized, and integrated into existing rack configurations. Its high-density power modules use less space and allow more room for expansion and are configurable for N+N or N+1 power redundancy. The user-friendly interface features a 7” touch-control LCD display with “at-a-glance” color graphics for system information and power conditions.

—PRODUCT FEATURES

Scalable. Customizable. Powerful.

Scalable System

Depending on model selected, system can be scalable from 10-20kVA or 10-40kVA to meet current and future power needs within the same footprint. N+N parallel system power up to 80kVA capability.

Customizable Design

Modular, customizable design, allows for easy integration into existing rack configurations and grow your power row by row, year by year.

Powerful Modules

High-density 10kVA/10kW power modules are 2U in height allowing for easy installation and service. Compact footprint allows for an efficient cabinet design.

—PRODUCT INSTALLATIONS

Ready to go, any way you stack it.

40K side by side configuration

Side-by-side Installation

40K standing

Stacked Installation

40K rackmount configuration

Rackmount Installation

—PRODUCT CONFIGURATIONS

Ready to grow, any way you scale it.

SMO20K10

SM020KAMFA

Capacity: 10-20 kVA / 10-20 kW
Redundancy: (N+X)
Power Factor (PF): 1.0
Quantity: 1
Max Quantity: 60

View Product
SM10KAPMA

Capacity: 10-20 kVA / 10-20 kW
Redundancy: (N+1) capable
Power Factor (PF): 1.0
Quantity: 1
Max Quantity: 3

View Product
BCT3L9N125

Hot-swappable: Yes
Form Factor: Rack/Tower/Stack
Smart Battery Management: Yes
Quantity: 1
Max Quantity: 10

View Product
BM120V30ATY

Hot-swappable: Yes
Voltage: 120V DC
Battery Type: VRLA
Quantity: 2
Max Quantity: 60*

View Product
SMUCB100UAC

Amperage: 100 A
Breaker Type: Input/Output
Number of Poles: 3
Quantity: 0*
Max Quantity: 2

View Product
Support call center agent

Questions?
Talk to a specialist

1.877.297.6937

SMO20K20

SM020KAMFA

Capacity: 10-20 kVA / 10-20 kW
Redundancy: (N+X)
Power Factor (PF): 1.0
Quantity: 1
Max Quantity: 60

View Product
SM10KAPMA

Capacity: 10-20 kVA / 10-20 kW
Redundancy: (N+1) capable
Power Factor (PF): 1.0
Quantity: 2
Max Quantity: 3

View Product
BCT3L9N125

Hot-swappable: Yes
Form Factor: Rack/Tower/Stack
Smart Battery Management: Yes
Quantity: 1
Max Quantity: 10

View Product
BM120V30ATY

Hot-swappable: Yes
Voltage: 120V DC
Battery Type: VRLA
Quantity: 2
Max Quantity: 60*

View Product
SMUCB100UAC

Amperage: 100 A
Breaker Type: Input/Output
Number of Poles: 3
Quantity: 0*
Max Quantity: 2

View Product
Support call center agent

Questions?
Talk to a specialist

1.877.297.6937

SMO40K10

SM040KAMFA

Capacity: 10-40 kVA / 10-40 kW
Redundancy: (N+X)
Power Factor (PF): 1.0
Quantity: 1
Max Quantity: 1

View Product
SM10KAPMA

Capacity: 10-20 kVA / 10-20 kW
Redundancy: (N+1) capable
Power Factor (PF): 1.0
Quantity: 1
Max Quantity: 3

View Product
BCT6L9N225

Hot-swappable: Yes
Form Factor: Rack/Tower/Stack
Smart Battery Management: Yes
Quantity: 1
Max Quantity: 10

View Product
BM120V30ATY

Hot-swappable: Yes
Voltage: 120V DC
Battery Type: VRLA
Quantity: 2
Max Quantity: 120*

View Product
SMUCB175UAC

Amperage: 175 A
Breaker Type: Input/Output
Number of Poles: 3
Quantity: 0
Max Quantity: 2

View Product
Support call center agent

Questions?
Talk to a specialist

1.877.297.6937

SMO40K20

SM040KAMFA

Capacity: 10-40 kVA / 10-40 kW
Redundancy: (N+X)
Power Factor (PF): 1.0
Quantity: 1
Max Quantity: 1

View Product
SM10KAPMA

Capacity: 10-20 kVA / 10-20 kW
Redundancy: (N+1) capable
Power Factor (PF): 1.0
Quantity: 2
Max Quantity: 5

View Product
BCT6L9N225

Hot-swappable: Yes
Form Factor: Rack/Tower/Stack
Smart Battery Management: Yes
Quantity: 1
Max Quantity: 10

View Product
BM120V30ATY

Hot-swappable: Yes
Voltage: 120V DC
Battery Type: VRLA
Quantity: 2
Max Quantity: 120*

View Product
SMUCB175UAC

Amperage: 175 A
Breaker Type: Input/Output
Number of Poles: 3
Quantity: 0
Max Quantity: 2

View Product
Support call center agent

Questions?
Talk to a specialist

1.877.297.6937

SMO40K30

SM040KAMFA

Capacity: 10-40 kVA / 10-40 kW
Redundancy: (N+X)
Power Factor (PF): 1.0
Quantity: 1
Max Quantity: 1

View Product
SM10KAPMA

Capacity: 10-20 kVA / 10-20 kW
Redundancy: (N+1) capable
Power Factor (PF): 1.0
Quantity: 3
Max Quantity: 5

View Product
BCT6L9N225

Hot-swappable: Yes
Form Factor: Rack/Tower/Stack
Smart Battery Management: Yes
Quantity: 1
Max Quantity: 10

View Product
BM120V30ATY

Hot-swappable: Yes
Voltage: 120V DC
Battery Type: VRLA
Quantity: 6
Max Quantity: 120*

View Product
SMUCB175UAC

Amperage: 175 A
Breaker Type: Input/Output
Number of Poles: 3
Quantity: 0
Max Quantity: 2

View Product
Support call center agent

Questions?
Talk to a specialist

1.877.297.6937

SMO40K40

SM040KAMFA

Capacity: 10-40 kVA / 10-40 kW
Redundancy: (N+X)
Power Factor (PF): 1.0
Quantity: 1
Max Quantity: 1

View Product
SM10KAPMA

Capacity: 10-20 kVA / 10-20 kW
Redundancy: (N+1) capable
Power Factor (PF): 1.0
Quantity: 4
Max Quantity: 5

View Product
BCT6L9N225

Hot-swappable: Yes
Form Factor: Rack/Tower/Stack
Smart Battery Management: Yes
Quantity: 1
Max Quantity: 10

View Product
BM120V30ATY

Hot-swappable: Yes
Voltage: 120V DC
Battery Type: VRLA
Quantity: 8
Max Quantity: 120*

View Product
SMUCB175UAC

Amperage: 175 A
Breaker Type: Input/Output
Number of Poles: 3
Quantity: 0
Max Quantity: 2

View Product
Support call center agent

Questions?
Talk to a specialist

1.877.297.6937
