Product Overview

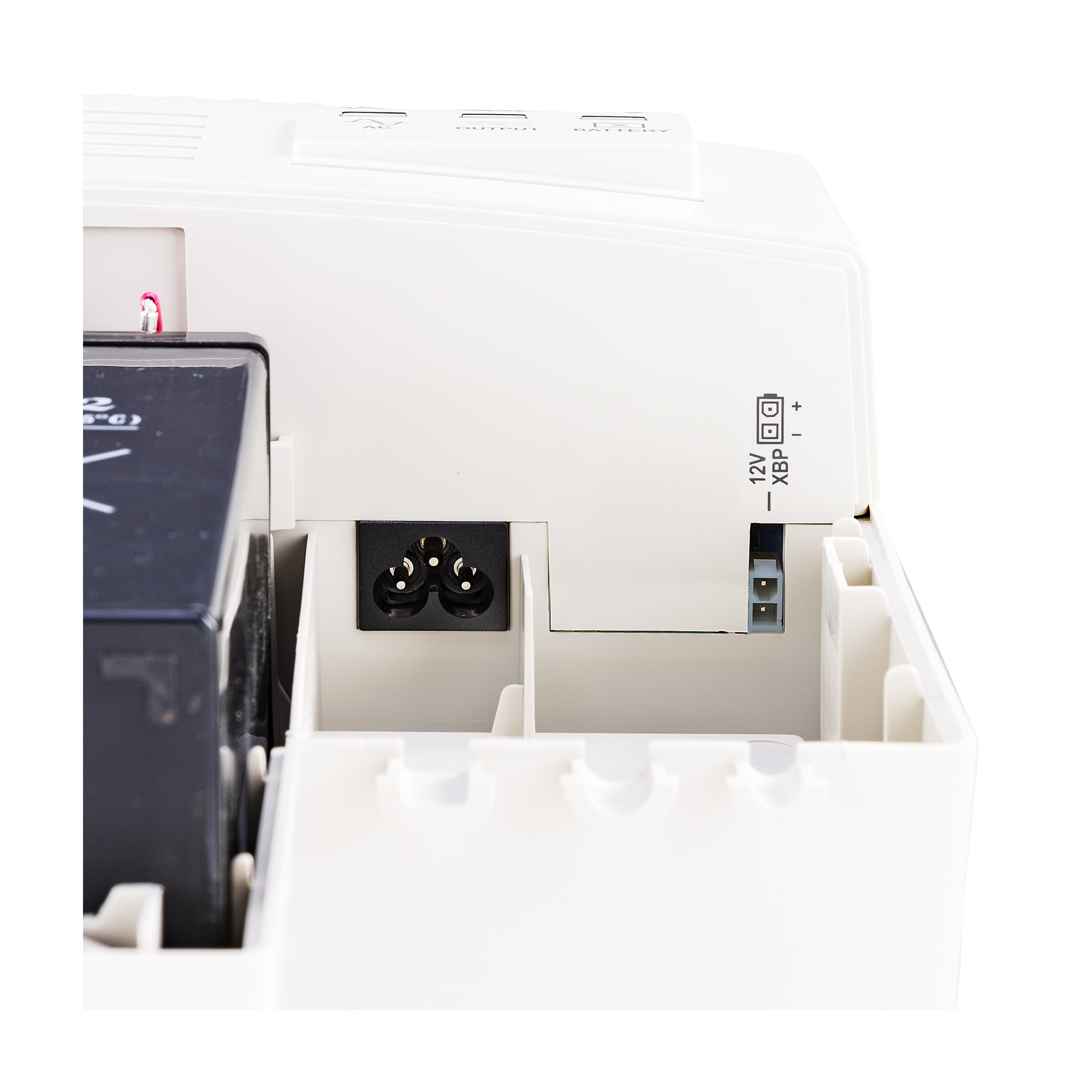

Designed for use with an Indoor CyberShield™ FTTx System, the Extended Battery Pack CS20A-EBP supplies 12 VDC to the 12V XBP port on the battery backup model. The CS20A-EBP houses a replaceable sealed lead-acid battery and comes with a three-year warranty.

Product Features

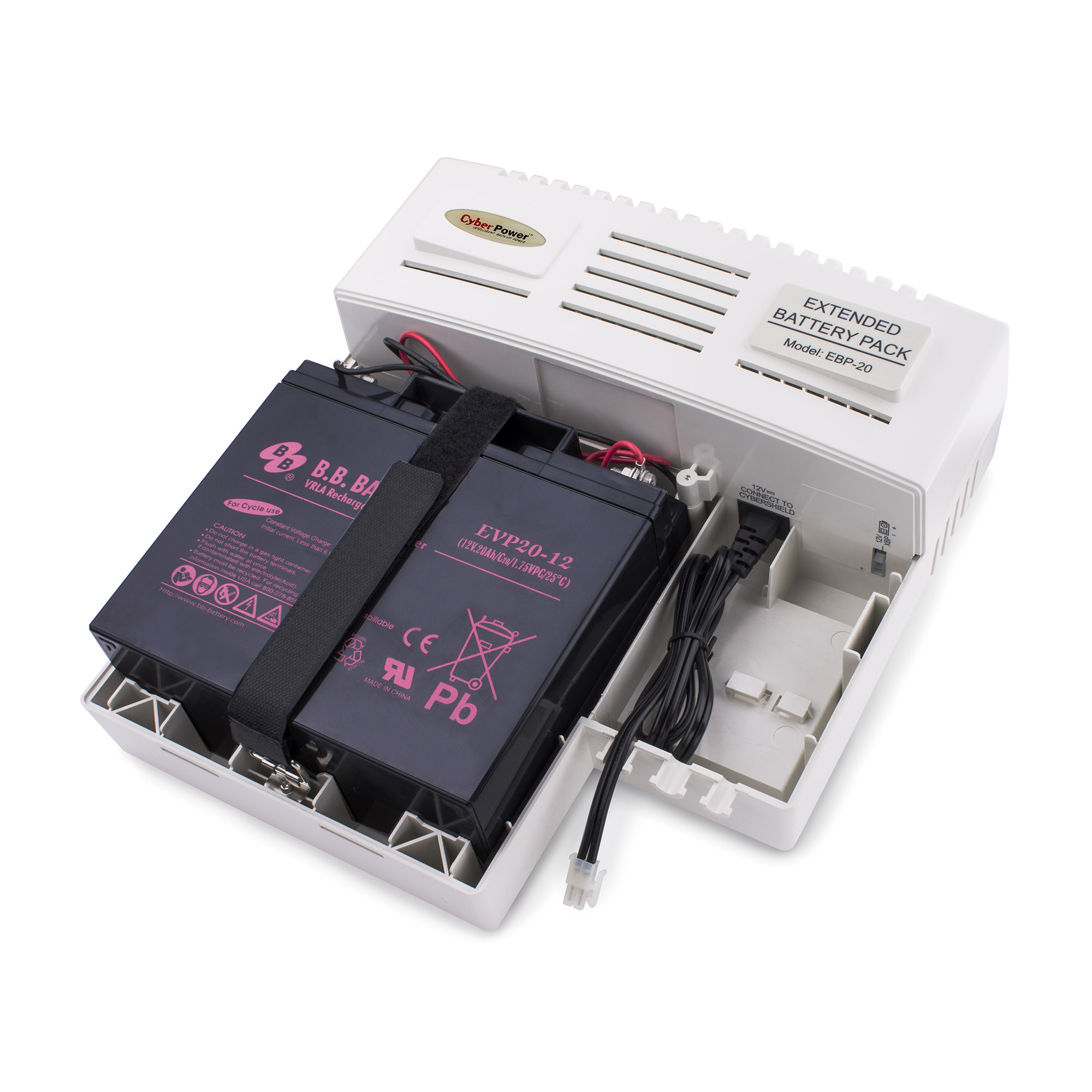

User Replaceable Batteries
Can be changed by a technician when needed without replacing the entire model.
Three-Year Warranty
Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.

Typical Applications

Fiber to the Home

Compatible Products

Specifications

Expand All

Battery
Battery Type	Sealed Lead-Acid
User Replaceable	Yes
Battery Quantity	1
Battery Size	12V/20Ah
Physical
Dimensions – L×W×D	30 × 28 × 9.9 cm
Weight	7.5 kg (with battery)
Environmental
Operating Temperature	32 – 104°F (0 – 40°C)
Operating Humidity	0 – 90% (non-condensing)
Maximum Operating Elevation	10,000 ft (3,000 m)
Maximum Storage Elevation	50,000 ft (15,000 m)
Storage Temperature	5 – 113°F (-15 – 45°C)
Warranty
Product Warranty	3 year

Downloads

Literature

User Manual

CS20A-EBP

237 KB

Support

FAQs

What should I do with spent batteries?

Deliver spent batteries to a recycling facility or ship them to the manufacturer in the replacement battery packing material received with the new battery.

Technical Support

Our Technical Support team will be happy help you with technical questions during business hours.

Our technical support team is available between 6AM and 9PM CST
Monday through Friday
Visit our Support Area

Submit a Support Ticket

Series

Model	Output Voltage	Rated Power	Extended Runtime Option	Battery
CBN50U48A-1	48 Vdc	50 W	N/A	12V/20Ah
CSN75A12V3		75 W
CSN30U12V-20	12 Vdc	30 W	CS20A-EBP	12V/20Ah
CSPS12V36W	12 Vdc	36 W	N/A	N/A
CS20A-EBP	12 Vdc	N/A	N/A	12V/20Ah
CSN27U12V	12 Vdc	27 W	CS20A-EBP	12V/7.2Ah
DTC36U12V3-G		36 W		12 V / 7.2 Ah
DTC50U12V	12 Vdc	50 W	CS20A-EBP	12V/9Ah
