Home Office Surge Protection

P4WSU

DISCONTINUED
  • Surge suppression: 900 J
  • Volts: 125 V
  • Plug type: NEMA 5-15P
  • Outlet type: 4 NEMA 5-15R
  • USB charge ports: 4 (4.2-Amp)
  • USB charge type: 4 USB Type A
  • EMI/RFI Filtration: Yes
  • Warranty: 1 Year Limited
  • Connected Equipment Guarantee: $75,000
Overview

Product Overview

The CyberPower Home Office Surge Protector P4WSU expands a household outlet to safely and conveniently power several devices at a single location anywhere in the home. The wall tap design and swivel outlets make it easy to accommodate up to four power cords in tight plug-in locations. The four 4.2-Amp USB charging ports also swivel for efficient cord management.

The P4WSU provides peace of mind with 900 joules of surge protection. The EMI/RFI Noise Filter limits electromagnetic and radio frequency interference to improve TV picture and sound quality. Plus, it’s backed by a 1 Year Limited Warranty and a $75,000 Connected Equipment Guarantee.

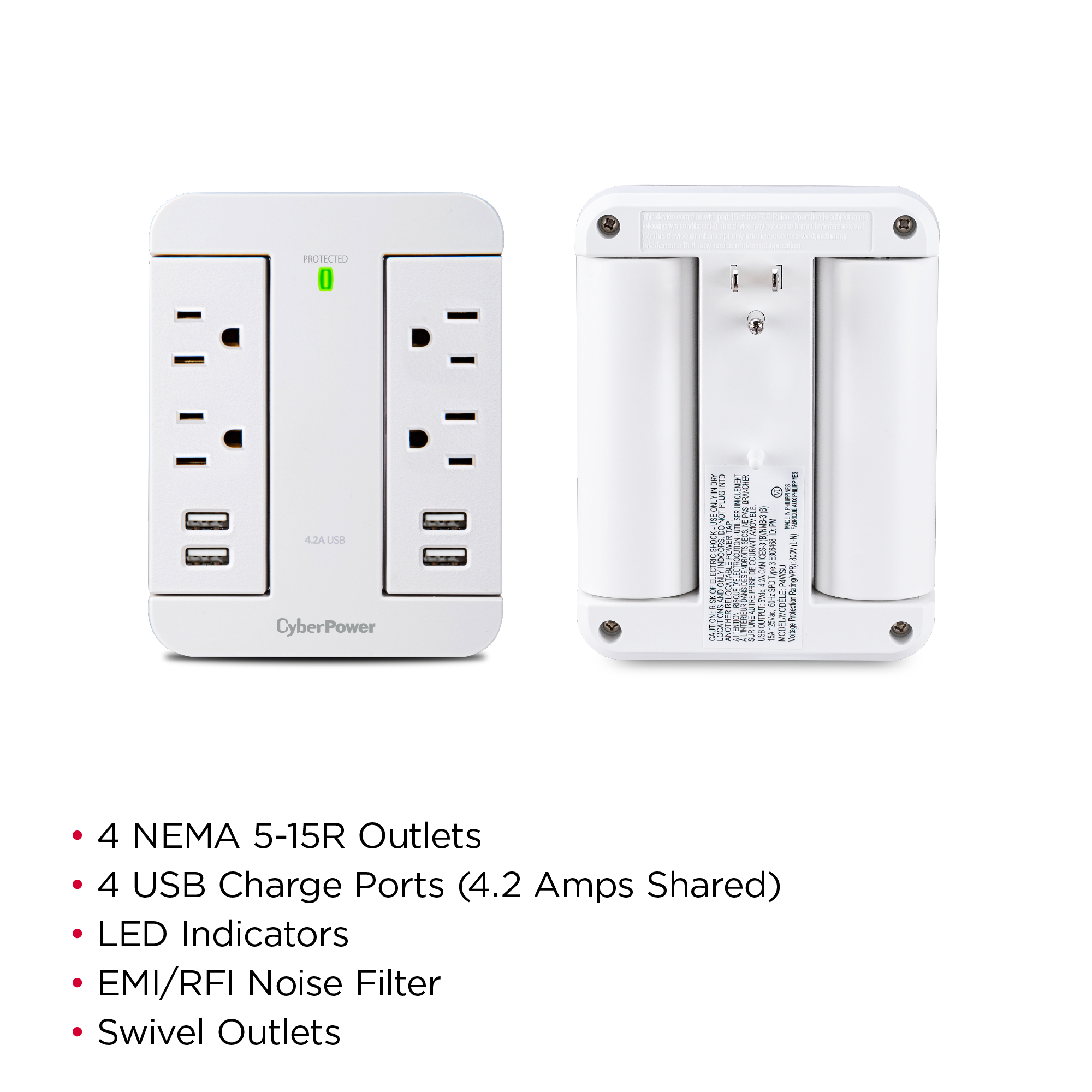

Product Features

Swivel Outlets
The two banks of swivel outlets provide power protection and distribution for outlets located in tight spaces, such as behind a bookcase or desk.

USB Charging Ports
Charge and power USB devices such as tablets (including iPad), smartphones, MP3 players, and other mobile accessories.

Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

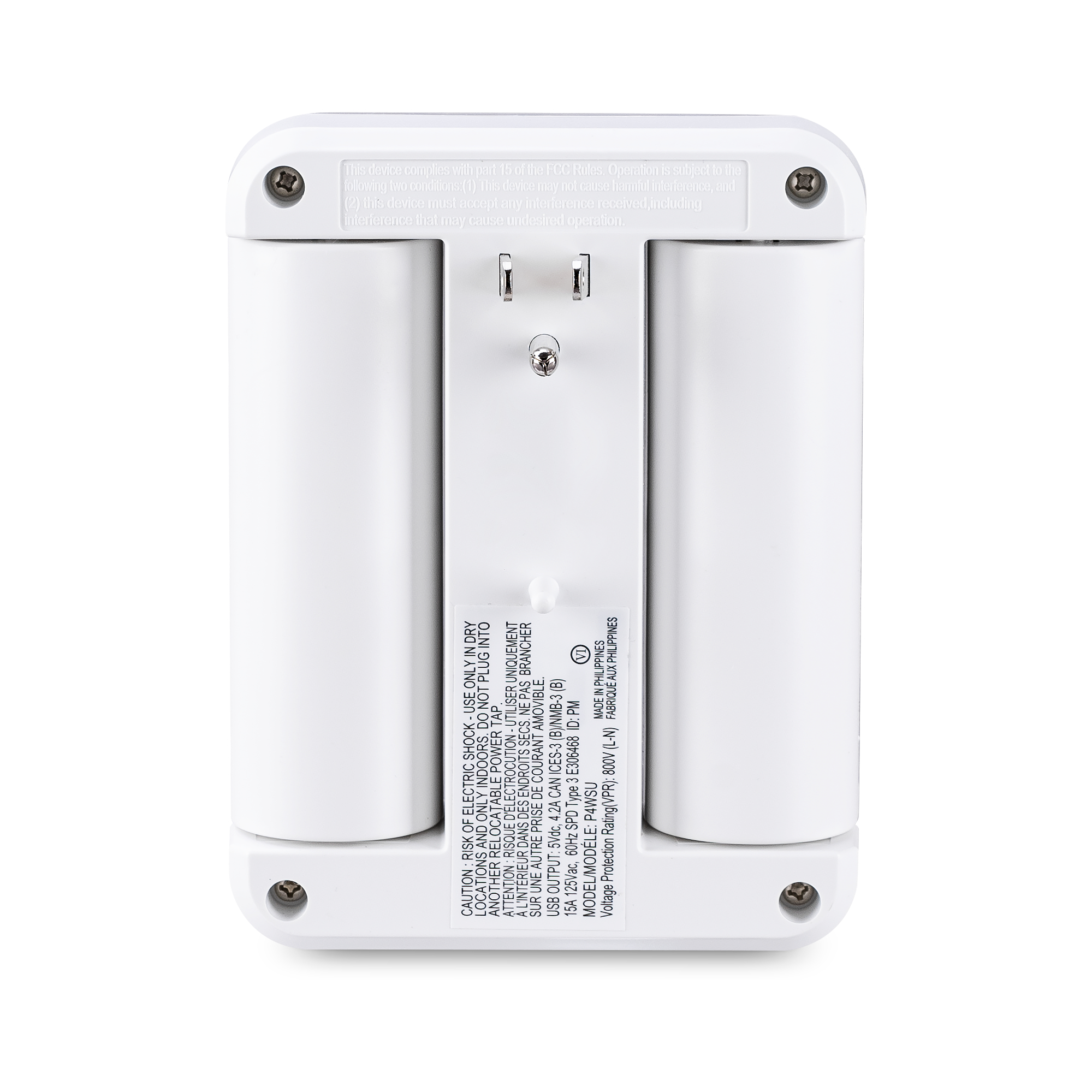

Wall Tap Plug
Plugs directly into a wall outlet; no power cord required.

Safe-Fail Protection
Power to connected equipment is cut when the surge protector cannot provide protection.

LED Indicator
Green LED indicator confirms electronics are powered and protected.

EMI/RFI Filters
Filters out electromagnetic and radio frequency interference to improve picture and sound quality.

Sturdy Case
Constructed of impact-resistant material for maximum durability.

1 Year Limited Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.

ISO & Safety Certifications
All CyberPower’s manufacturing facilities are ISO-9001 Quality Tested. CyberPower’s products are also UL and cUL Listed.

Compatible Products
Specifications
Expand All
Input
Circuit Breaker None
Cord Length Walltap
Input Plug Type NEMA 5-15P
Input Voltage 125 VAC
Maximum Input Current 15A
Plug Style Wall Tap
Output
Outlet Type 4 – NEMA 5-15R
Outlets – Total 4
USB Charge Port Yes
USB Charge Port Amperage 4.2 Amps (Shared)
USB Charge Port Quantity 4
USB Charge Port Standard Type A
USB Charge Port Type 4 Type A
USB Charge Port Voltage 5 VDC
Surge Protection & Filtering
Attenuation 32 dB
Clamping Voltage 800V (H-N)
Coax Protection RG6 None
EMI/RFI Filtration Yes
Maximum Surge Current 30000 A
Maximum Surge Current H-G N/A
Maximum Surge Current H-N 30000 A
Maximum Surge Current N-G N/A
Maximum Surge Voltage 6000 V
Response Time <1 Nanosecond
Surge Suppression (Joules) 900 J
Physical
Color White
Form Factors Supported Direct Plug
Material of Construction Plastic

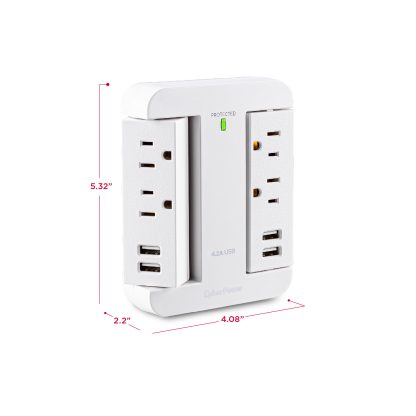

Dimensions
Physical Dimensions – (WxHxD) (cm) 10.36 x 13.51 x 5.59 (cm)
Physical Dimensions – (WxHxD) (in) 4.08 x 5.32 x 2.2 (in)
Physical Dimensions – (WxHxD) (mm) 104 x 135 x 56 (mm)
Physical Weight (kg) 0.26
Physical Weight (lb) 0.57
Dimensions – Shipping
Shipping – Weight (kg) 0.38
Shipping – Weight (lb) 0.83
Shipping Dimensions – (WxHxD) (cm) 11.43 x 15.88 x 6.35 (cm)
Shipping Dimensions – (WxHxD) (in) 4.5 x 6.25 x 2.5 (in)
Shipping Dimensions – (WxHxD) (mm) 114.3 x 158.75 x 63.5 (mm)
Certifications
Environmental RoHS Compliant
Safety UL498a
UL1310
UL1449
FCC
DOE VI
Warranty
CEG Amount $75000
Connected Equipment Guarantee Lifetime
Product Warranty 1 Year Limited Warranty
Feature Focus
Why Do I Need A Surge Protector?

Utility power supplied to electrical outlets is sometimes inconsistent. The short-duration voltage surges or spikes that occasionally happen can damage components in electronic devices such as computers and workstations. In addition to equipment damage, irretrievable data loss may occur. In the U.S., the nominal or standard voltage supplied to household and office wiring is 120 volts. A voltage surge or spike can cause electronic components to overheat, either immediately destroying them or causing permanent damage that can lead to premature failure.

A surge protector or surge suppressor provides protection against power surges. This device is located in the power circuit between the utility power outlet and the connected electronic equipment. Surge protectors work by diverting excess voltage to the ground, allowing only the nominal voltage to travel through the wiring to connected devices. This is accomplished using a variable resistance component in the surge protector called a metal oxide varistor (MOV). Under normal voltage conditions, the resistance of the MOV is such that it remains closed. As utility voltage increases beyond nominal, the MOV resistance decreases accordingly which forces the unwanted overvoltage to ground, maintaining a constant flow of nominal voltage to sensitive electronic equipment.

USB Chargers

A USB (Universal Serial Bus) charger generates the 5 Volt DC power required to charge a USB device. To operate, a charger plugs into an AC outlet. A USB cable connects the charger to the USB device via a Type A socket. USB chargers vary in the amount of electrical amps they handle. USB chargers from CyberPower Systems charge iPods, PDAs, phones, cameras and other personal electronics.

Our USB chargers have various features, depending upon the model. Significant features of this product line include vehicle ports, 2.1-Amp Quick Charge Technology, energy-efficient design elements, and LED indicators. Quick Charge Technology provides fast charging power for tablets, smartphones, and similar devices. USB chargers, cables, and hubs are among the many power accessories available from CyberPower for computer and consumer electronics. Other power accessories include mobile batteries and power inverters.

Downloads

P4WSU

343 KB

P4WSU

98 KB

P4WSU

58 KB
Support
Can I plug another surge protector or power strip into this unit?

Not recommended.

Does this surge protector support products with 220V?

No, it’s designed for 125V.

If my surge protector has a ground light, should it be illuminated (green)?

Yes. The ground indicator light should be illuminated. If the light is not illuminated, there is a problem with the AC outlet into which the CyberPower surge suppressor is plugged. If this is the case, please disconnect the surge suppressor until the problem is resolved. The problem must be resolved before the CyberPower surge suppressor can be used.

Common issues with an AC outlet include: bad ground, missed ground, or reversed wiring (usually due to sub-standard wiring, typical in residential housing built prior to 1980). You may need to contact a qualified electrician to repair/upgrade the outlet.

NOTE: Using the CyberPower surge suppressor when the ground indicator light is not illuminated will void the warranty.

Is this surge protector UL certified?

Yes.

What devices should be plugged into a surge protector?

Computers, home entertainment equipment, cable DSL/modems, phone/fax/modem, cable and satellite boxes, and other electronics you wish to protect.

If my surge protector has a surge light, should it be illuminated?

Yes. The surge light should be illuminated. This indicates that the CyberPower surge suppressor is functioning properly. If the light is not illuminated, it indicates that the surge protector has received a catastrophic surge and will need to be replaced. CyberPower will replace the surge suppressor free of charge, provided the warranty terms and conditions are met.

What’s in the box?

One CyberPower Surge Protector, one user manual.
