Overview
Product Overview

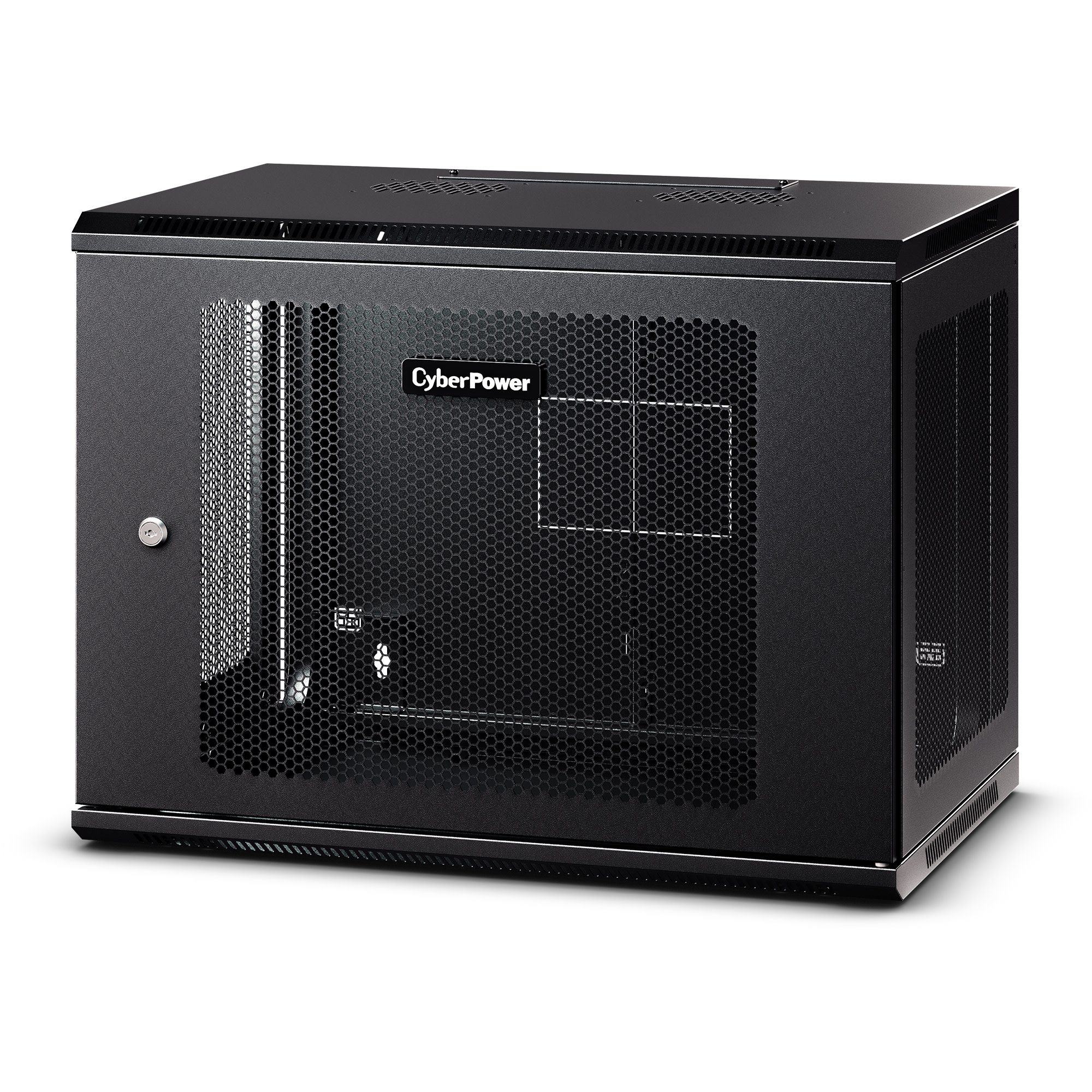

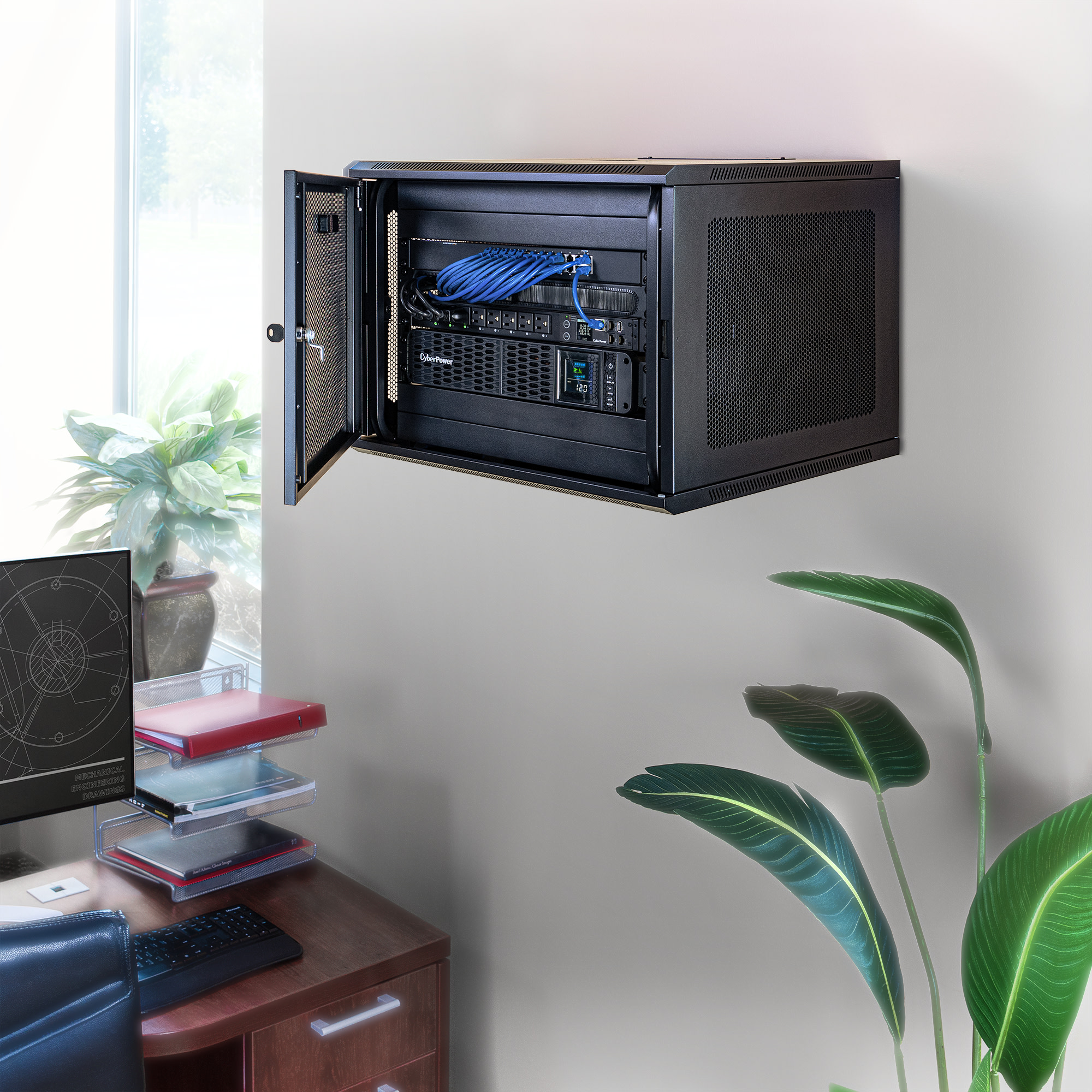

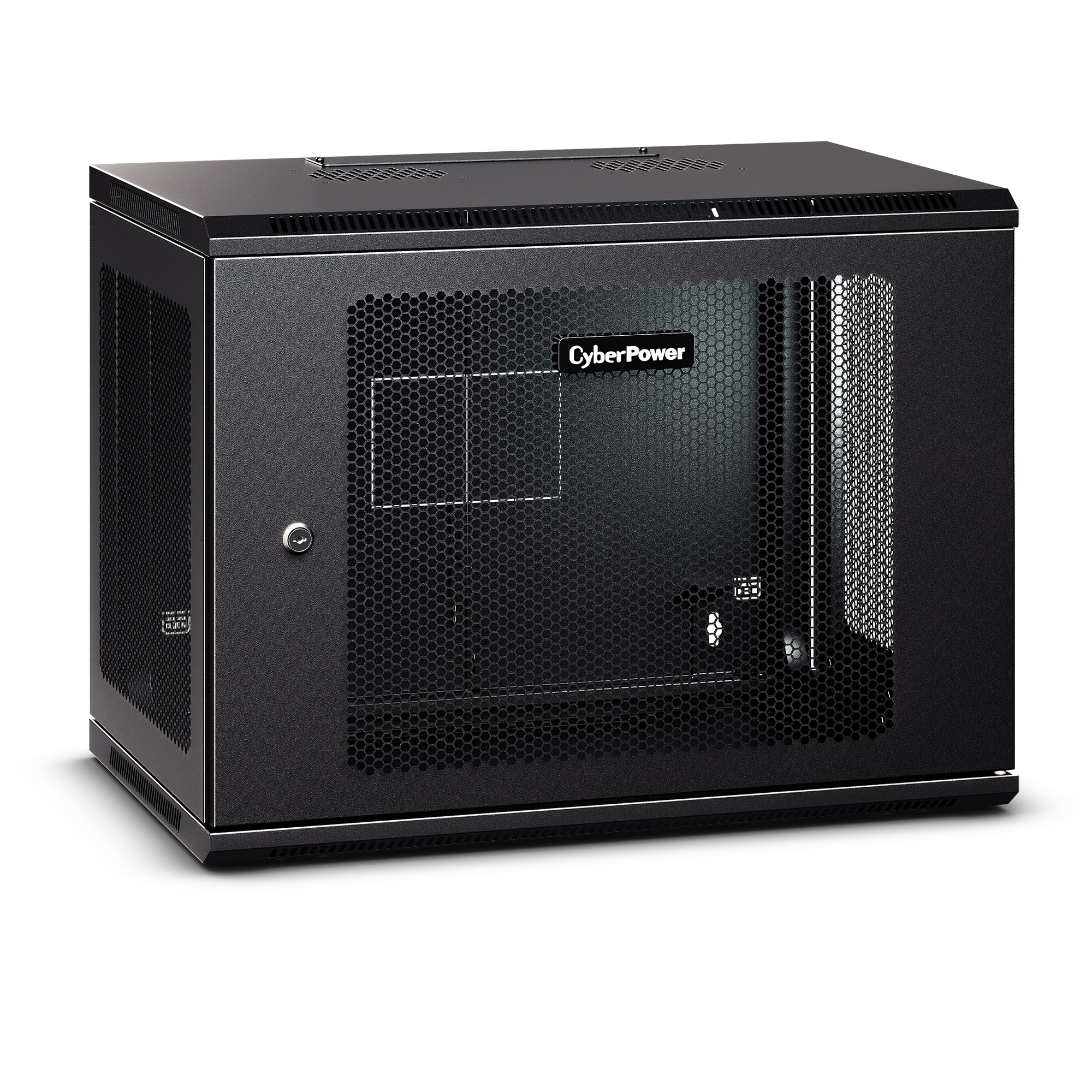

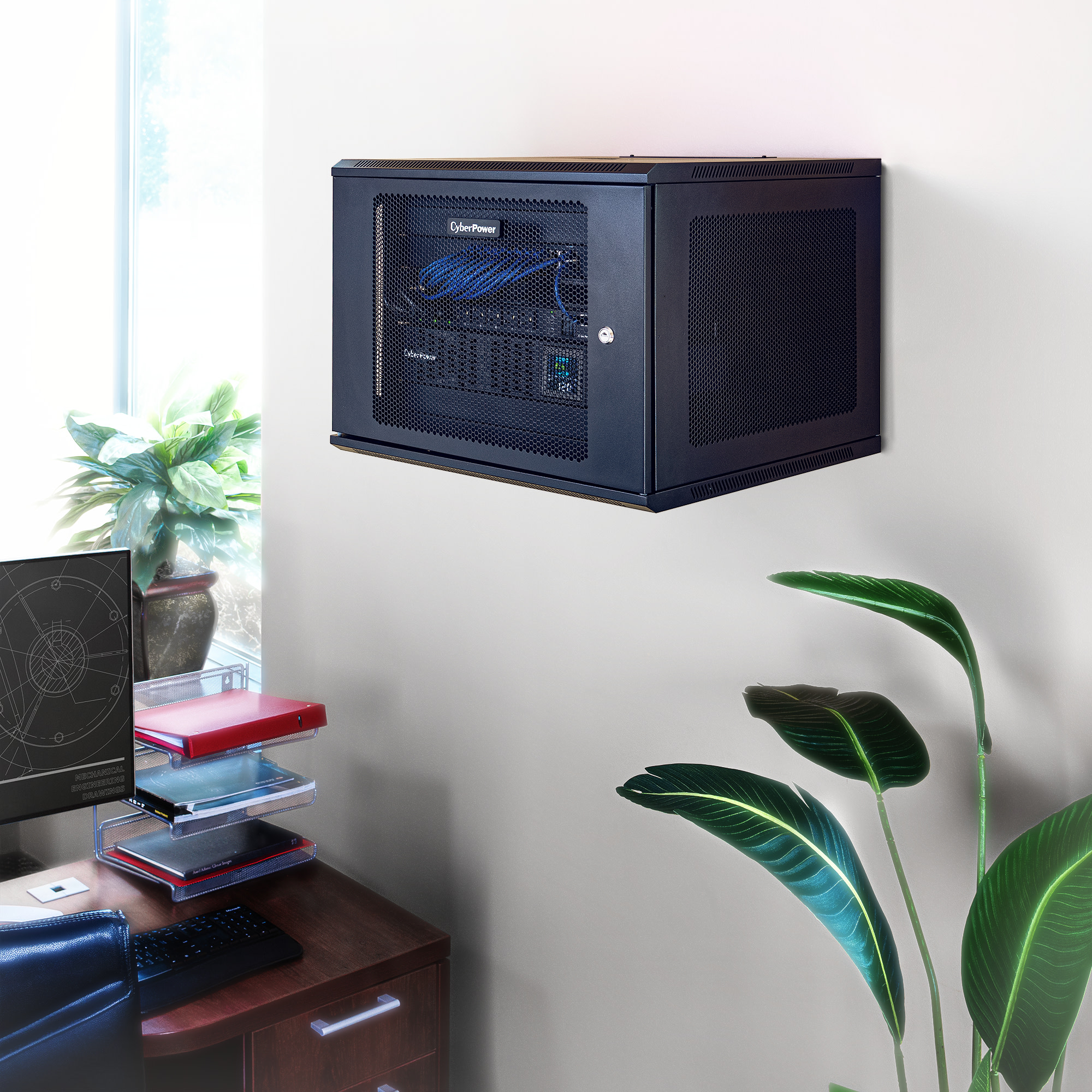

The CR9U61003 is designed for use in network closets, classrooms and other locations. This wall mount rack houses network switches and patch panels up to 20.3" deep. It includes convenient top panel cable access openings, perforated door and side panels for efficient airflow, adjustable rack angles, and square and threaded mounting holes. The CR9U61003 ships fully assembled for quick deployment, and can be customized with compatible accessories. It is covered by a 5-year limited warranty.

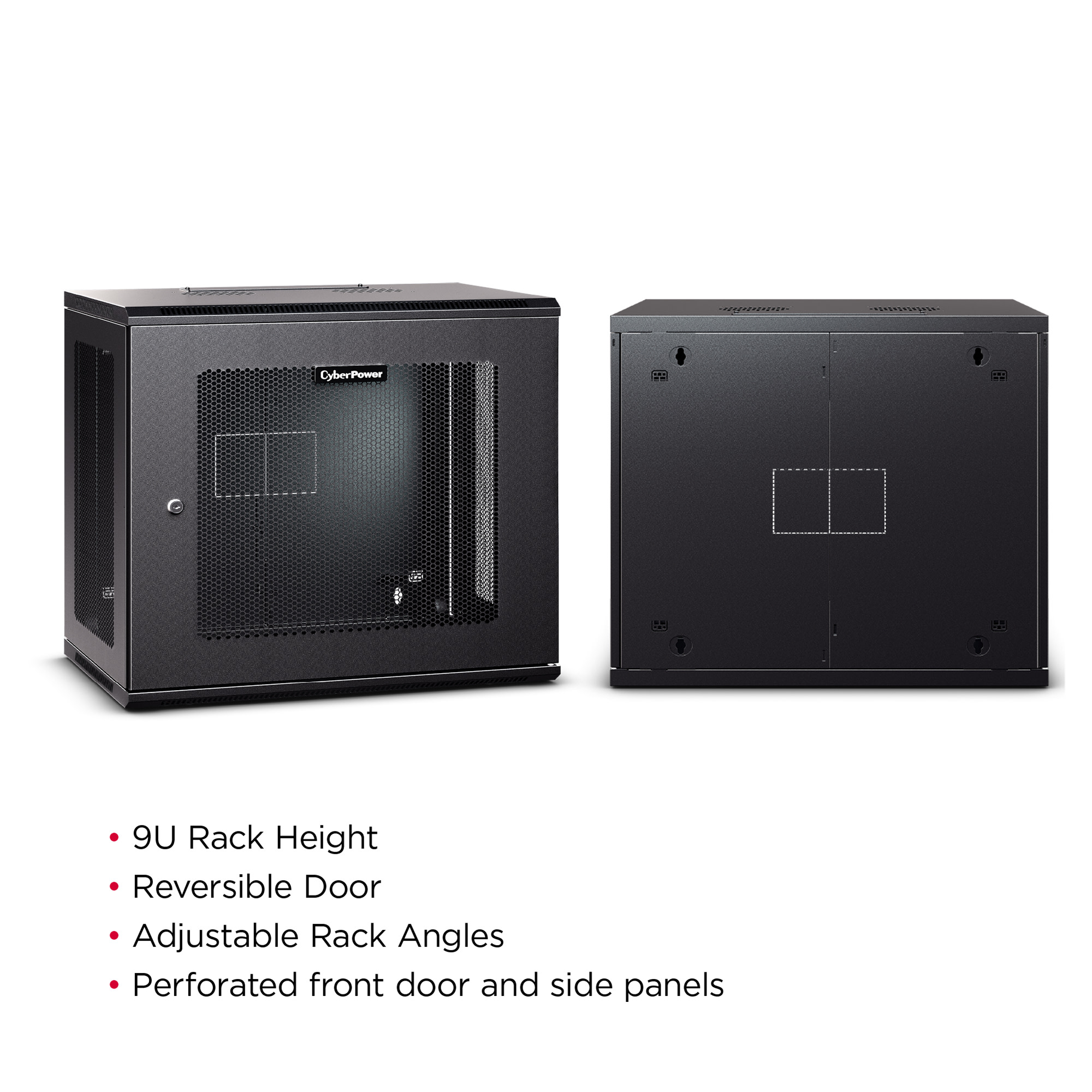

Product Features

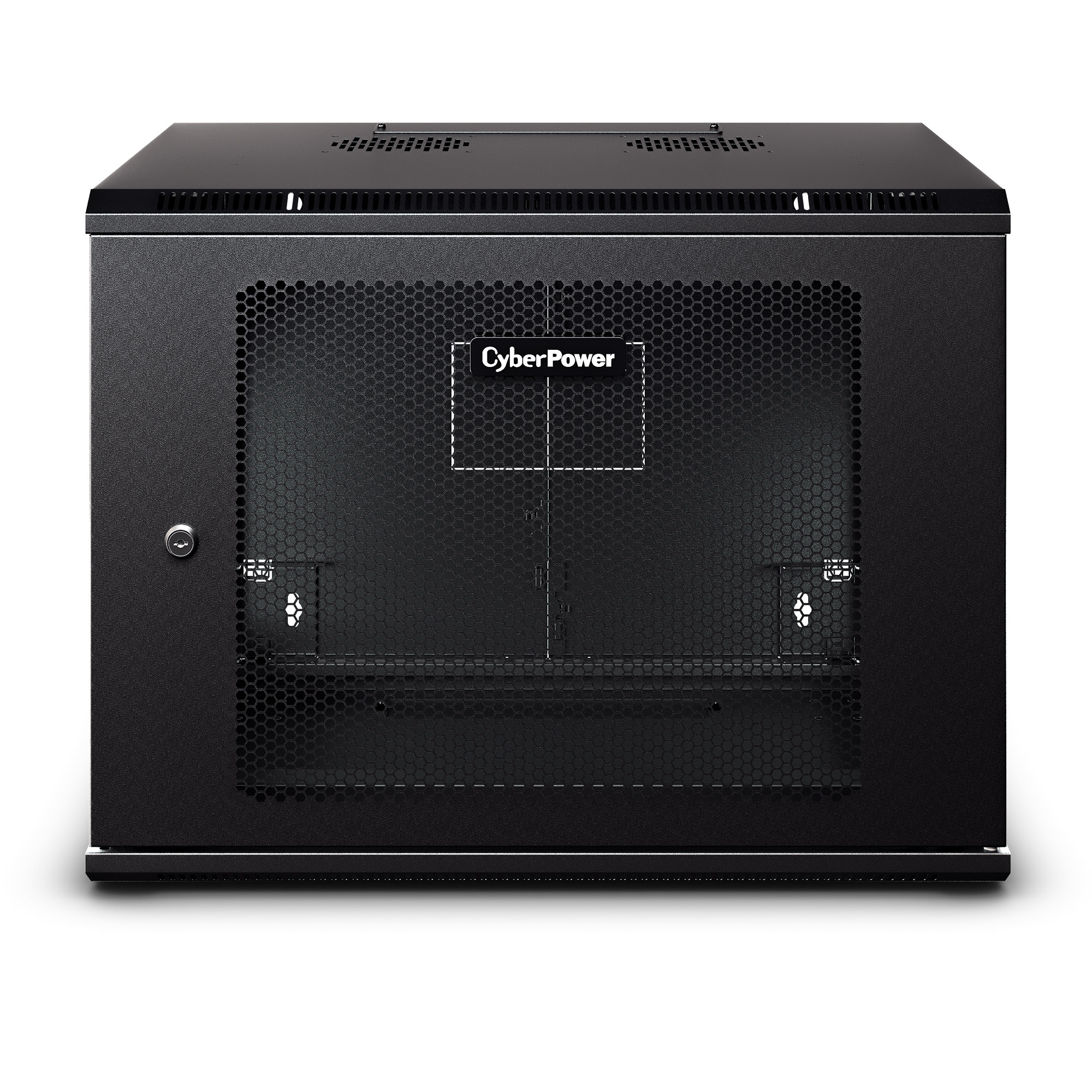

- Perforated Front Door and Side Panels
Provides ventilation for small servers and networking equipment. - Reversible Door
Front door has spring loaded hinges and can be easily moved to the opposite side. - Quick Release Side Panels
Lockable side panels can be removed easily for quick access to equipment and cabling. - Cable Access Openings
Slots in the bottom and top provide convenient cable routing to and from the enclosure. - Rack Mounting Compatibility
The CR9U61003 is compatible with all EIA-310 compliant 19″ equipment. - Adjustable Rack Angles

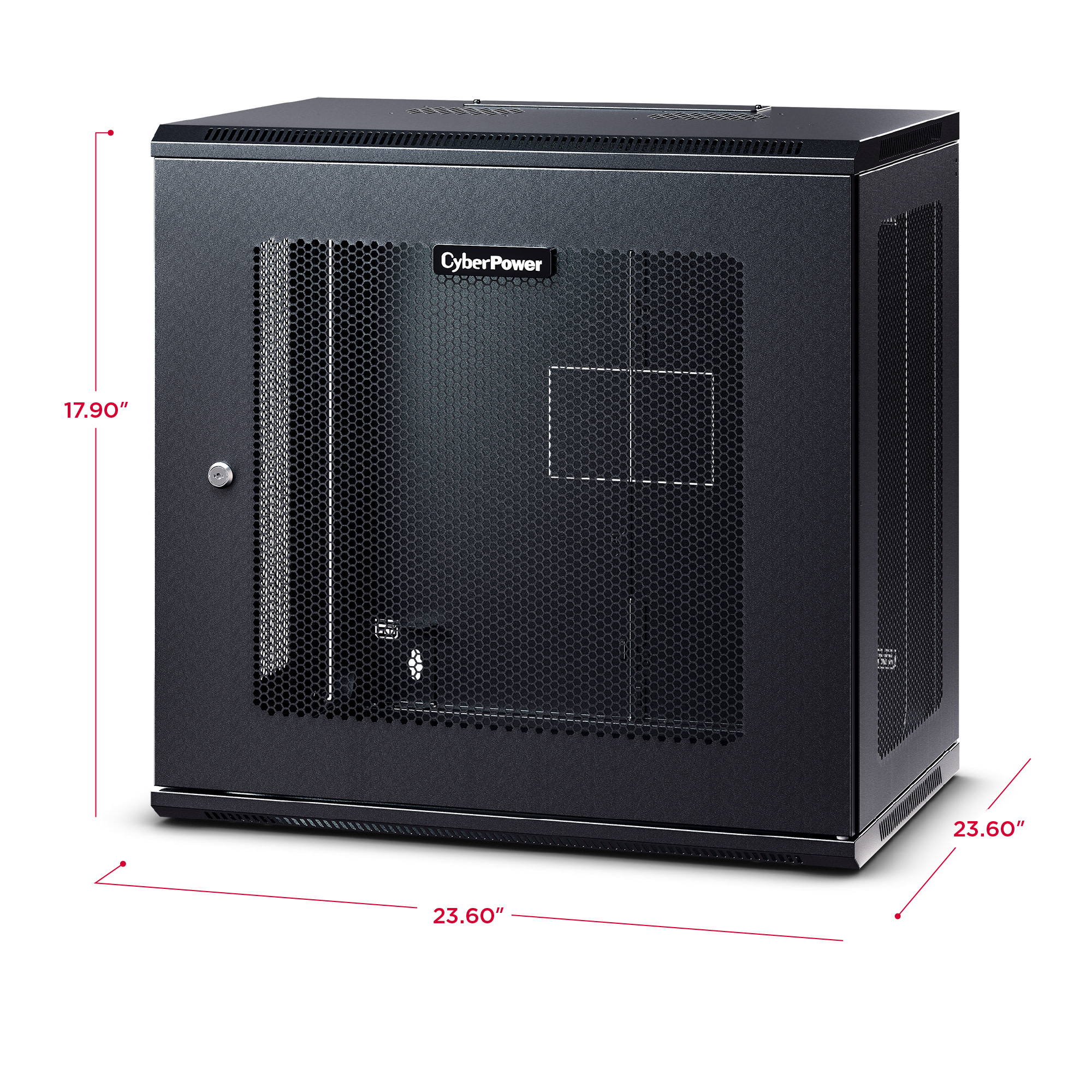

Vertical rack angles can be adjusted in 3/4″ increments for mounting depth requirements up to 20.3″. U rack units are numbered front and back for easy equipment installation. - Designed for Stability
A high-precision frame design and heavy gauge mounting rails provide a load rating of 132 lbs. - Integrated Electrical Grounding
Grounding connections are located on the frame for facility ground.
