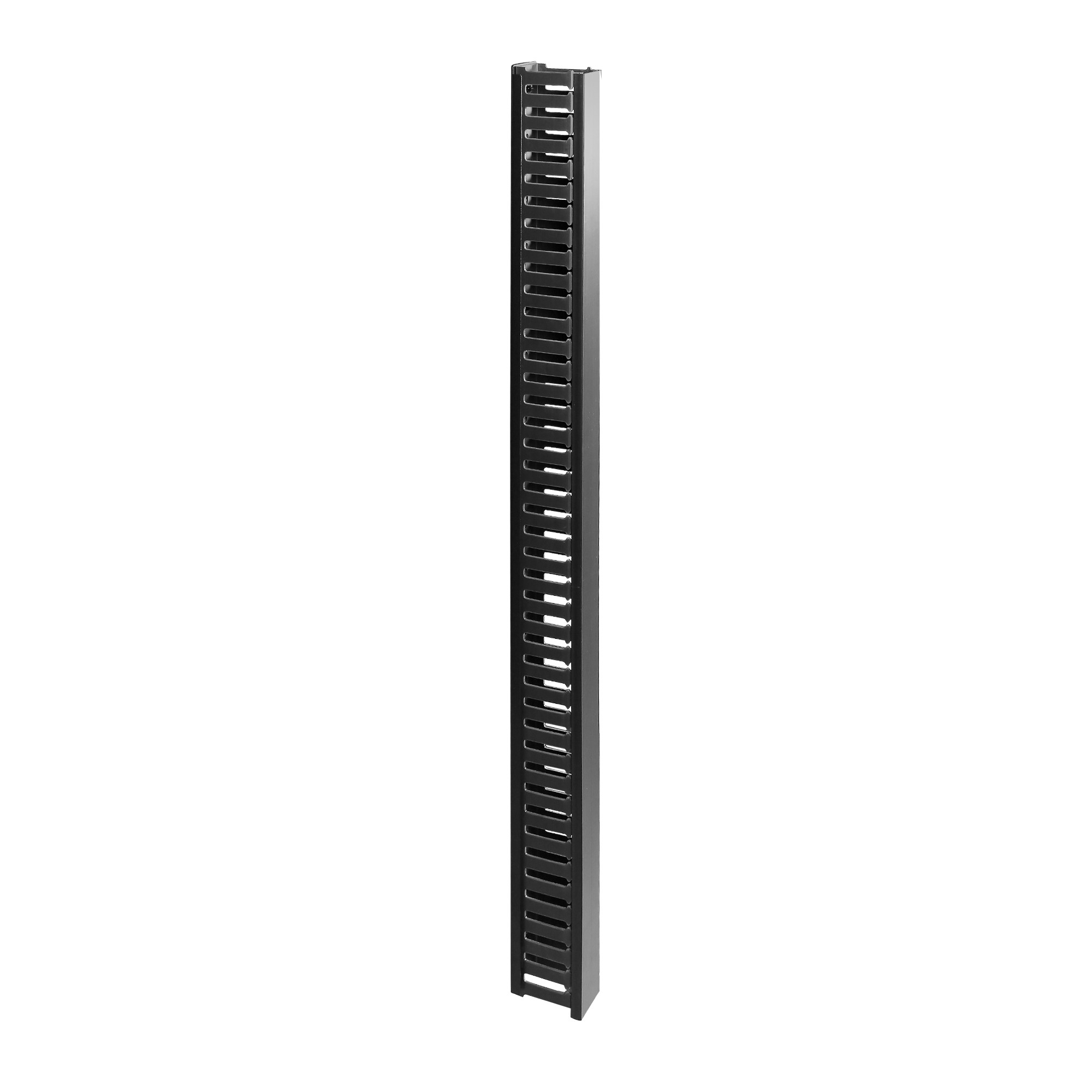

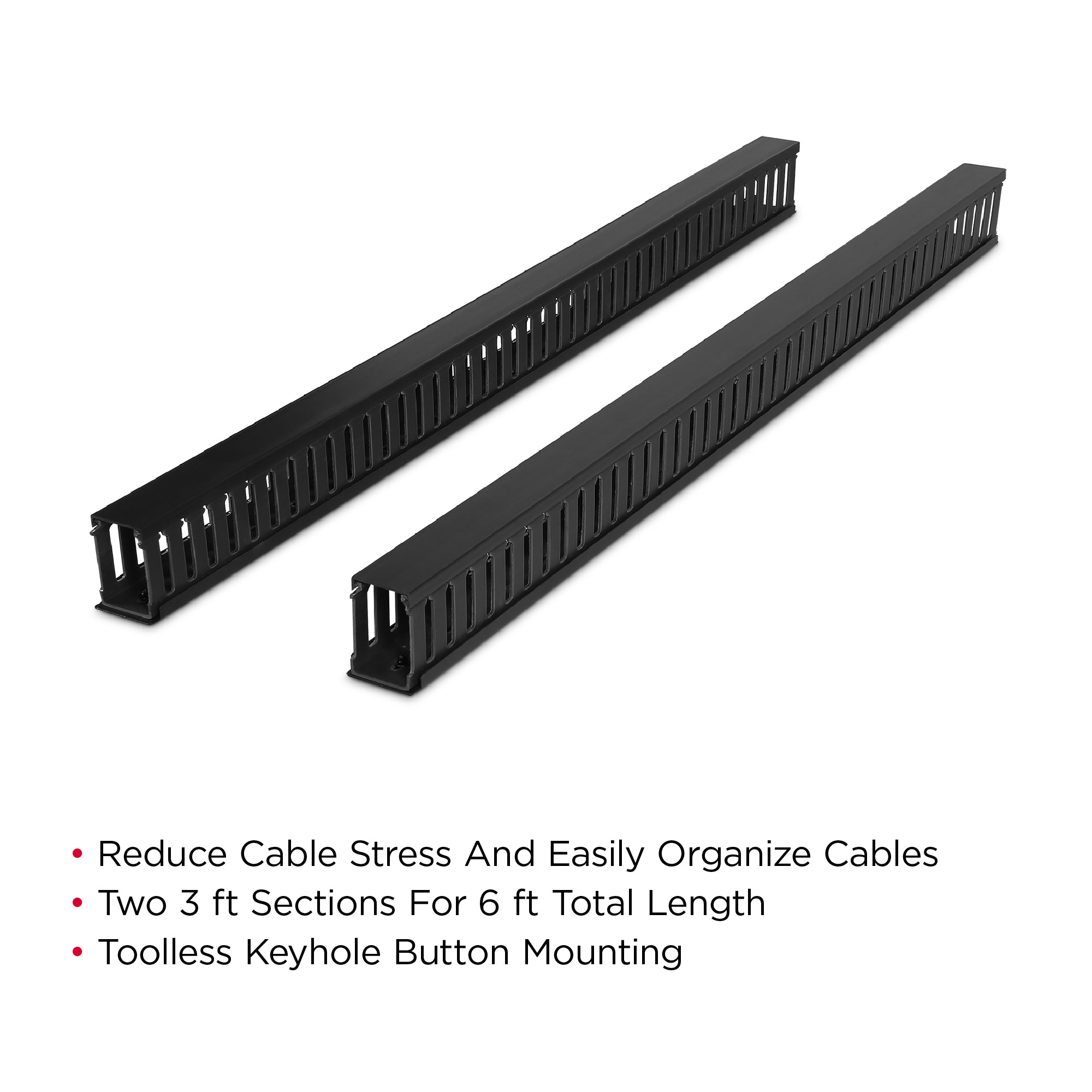

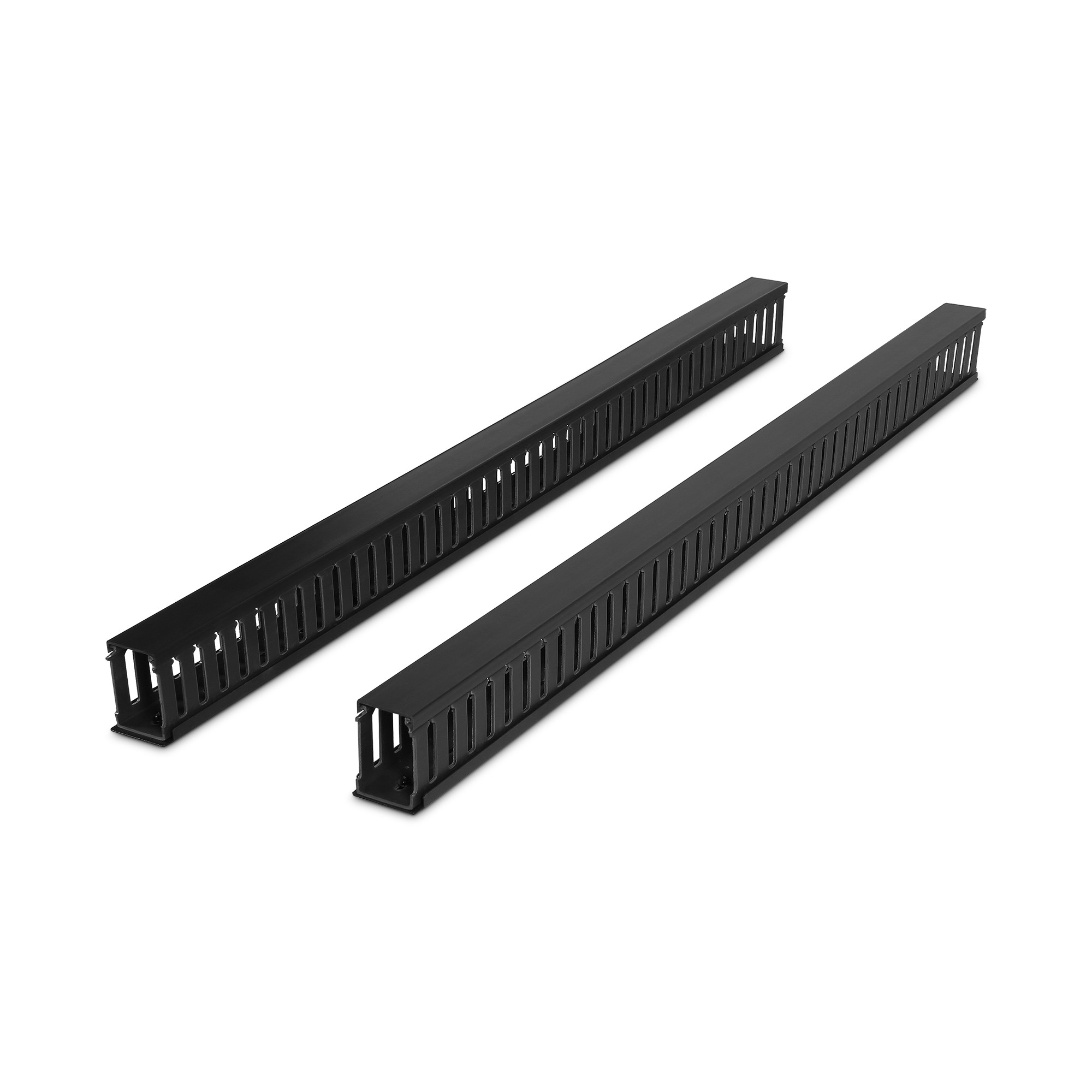

The CRA30001 vertical duct cable manager helps eliminate cable stress and organize cable runs within EIA-310 compliant rack enclosures or open frame racks. It has 2 sections, each 3 ft long, to allow for flexible installation options. This model features toolless keyhole button mounting hardware for quick and easy installation. The CRA30001 is covered by a 5-year limited warranty.
| Output | |
|---|---|
| USB Charge Port | No |
| Physical | |
| Installation | Toolless Mounting |
| Material | Plastic Cold Rolled Steel |
| Rack Height | 0U |
| Dimensions | |

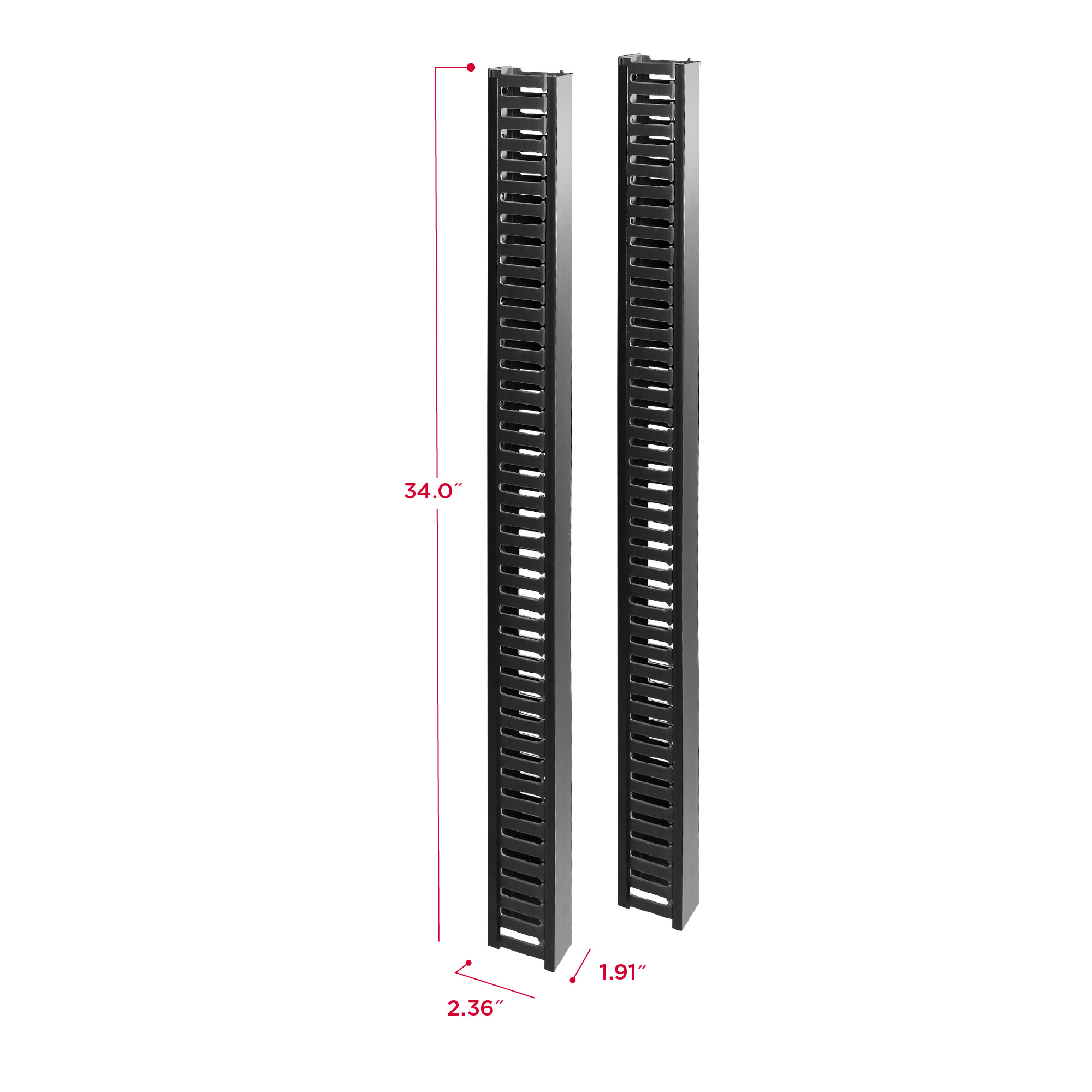

| Physical Dimensions – (WxHxD) (cm) | 5.99 x 86.36 x 4.85 (cm) |
| Physical Dimensions – (WxHxD) (in) | 2.36 x 34 x 1.91 (in) |
| Physical Dimensions – (WxHxD) (mm) | 60 x 864 x 49 (mm) |
| Physical Weight (kg) | 1.95 |
| Physical Weight (lb) | 4.3 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 16.67 |
| Shipping – Weight (lb) | 36.75 |
| Shipping Dimensions – (WxHxD) (cm) | 15.88 x 5.72 x 91.44 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 6.25 x 2.25 x 36.0 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 158.75 x 57.15 x 914.4 (mm) |
| Certifications | |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 5 Year Limited Warranty |
Our Technical Support team will be happy help you with technical questions during business hours.
Our technical support team is available between 6AM and 9PM CST
Monday through Friday
Visit our Support Area
| Model | Description | Rack Height | Toolless Mount | MSRP |
|---|---|---|---|---|
| CRA30001 | Metal Duct | 0U | Yes | $155.00 |
| CRA30007 | Flex Ring | 0U | Yes | $112.00 |
| CRA30008 | Cable Ladder | None | Yes | $251.00 |
| CRA30002 | Metal Duct | 1U | No | $56.00 |
| CRA30005 | Brush Panel | 1U | No | $38.00 |
| CRA30003 | Flexible Duct | 1U | No | $69.00 |
| CRA30004 | Flex Ring | 1U | No | $42.00 |
| CRA30006 | Flex Ring | 2U | No | $44.00 |
| CRA30009 | Cable Trough | None | Yes | $95.00 |
| CRA30010 | Cable Trough | None | Yes | $75.00 |
