Hardware

SNEV001

$159.00 MSRP
Purchase Online
Find a Solution Provider Locate a Partner
  • Temperature readings: Fahrenheit, Celsius
  • Temperature accuracy: 14°F to 158°F +/- 0.9°F; -10°C to 70°C +/- 0.5°C
  • Humidity accuracy: 10-90 RH ± 2%
  • Voltage: 12V (from RMCARD)

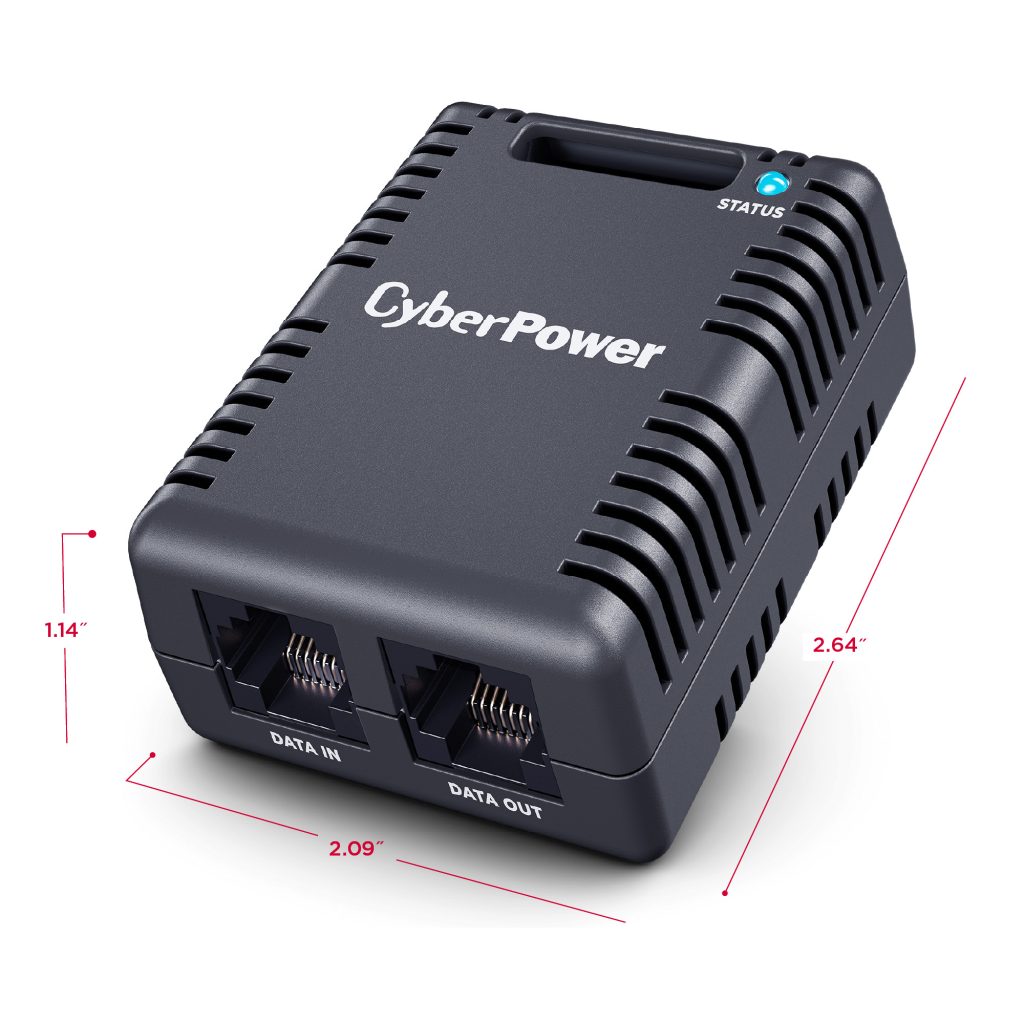

  • Dimensions (LxWxH): 1.14 x 2.64 x 2.09 in.
  • Weight: 0.1 lbs.

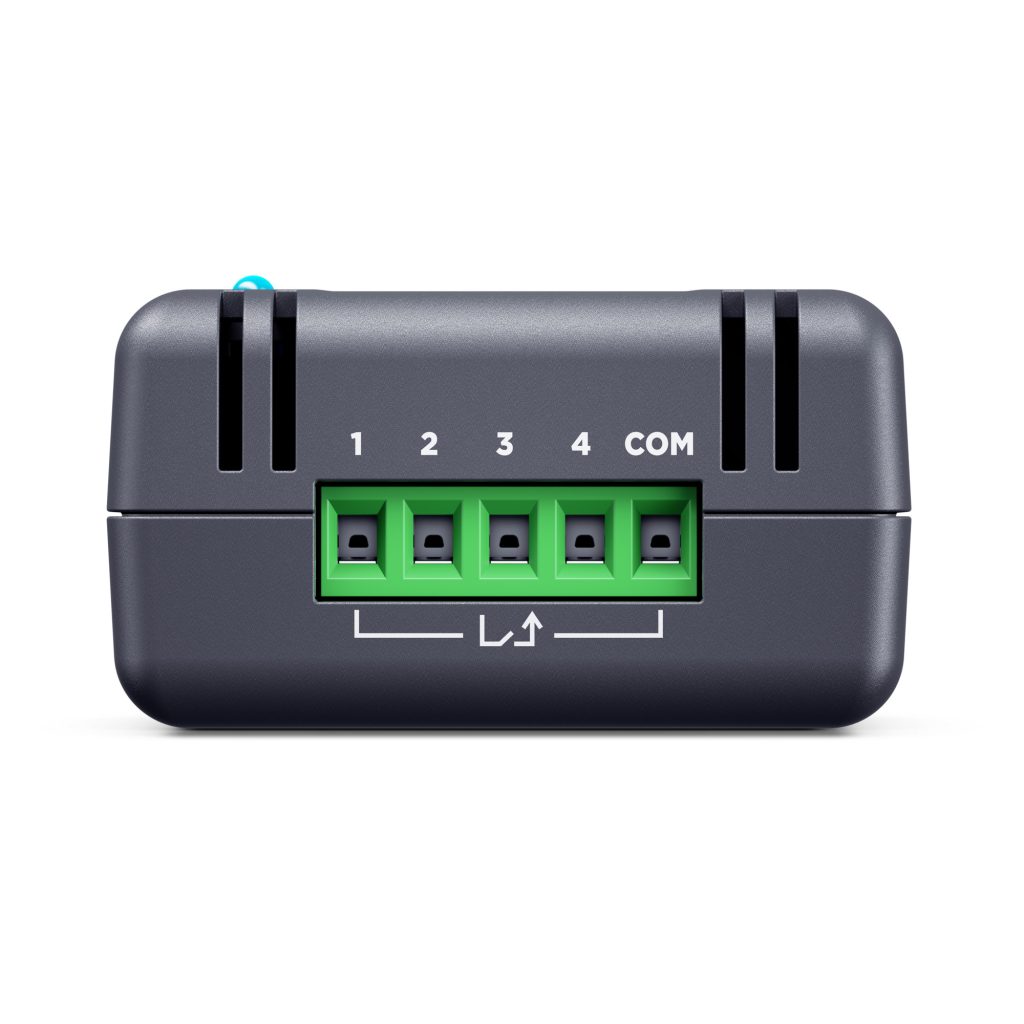

  • Input dry contact: 4

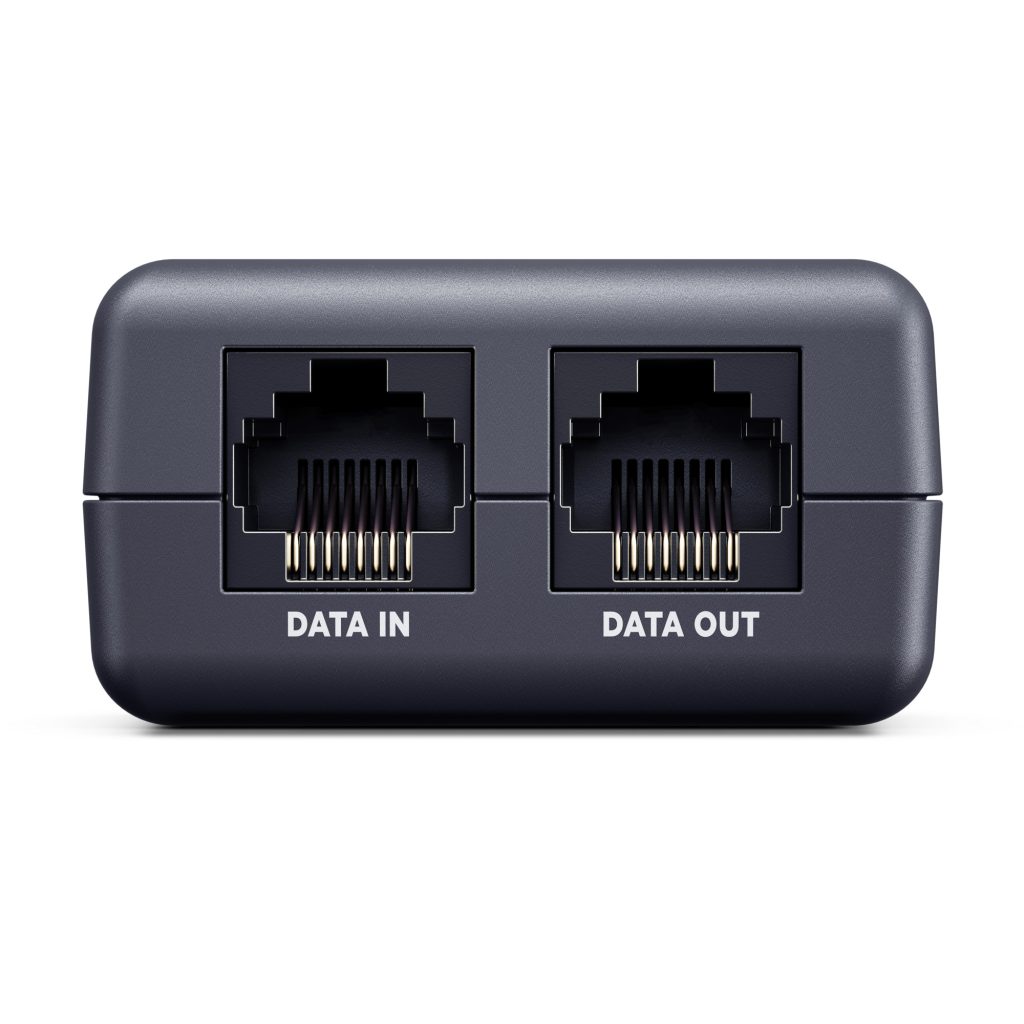

  • Connection port & cable: RJ45 Ethernet port x 2, 10 ft. cable, Daisy Chain x 8 Max
  • Warranty: 3 year
Overview

Product Overview

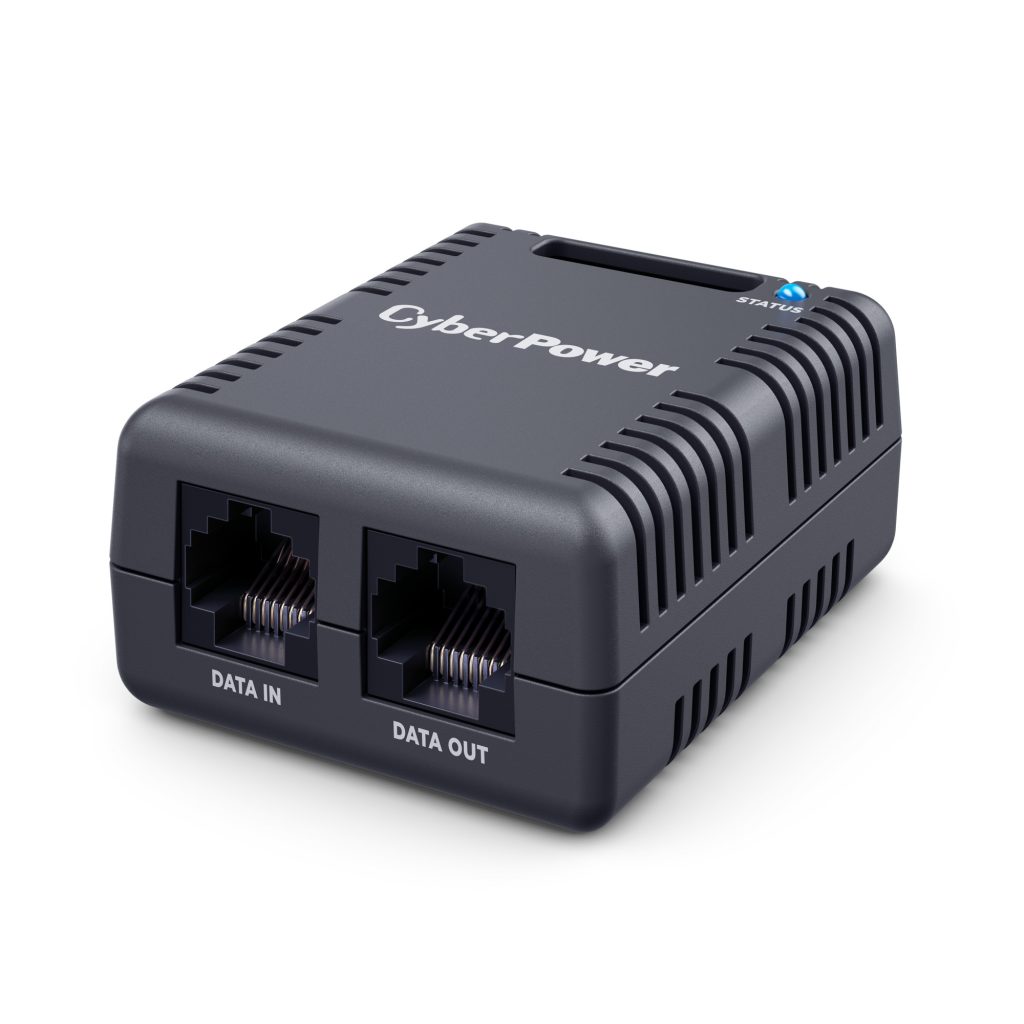

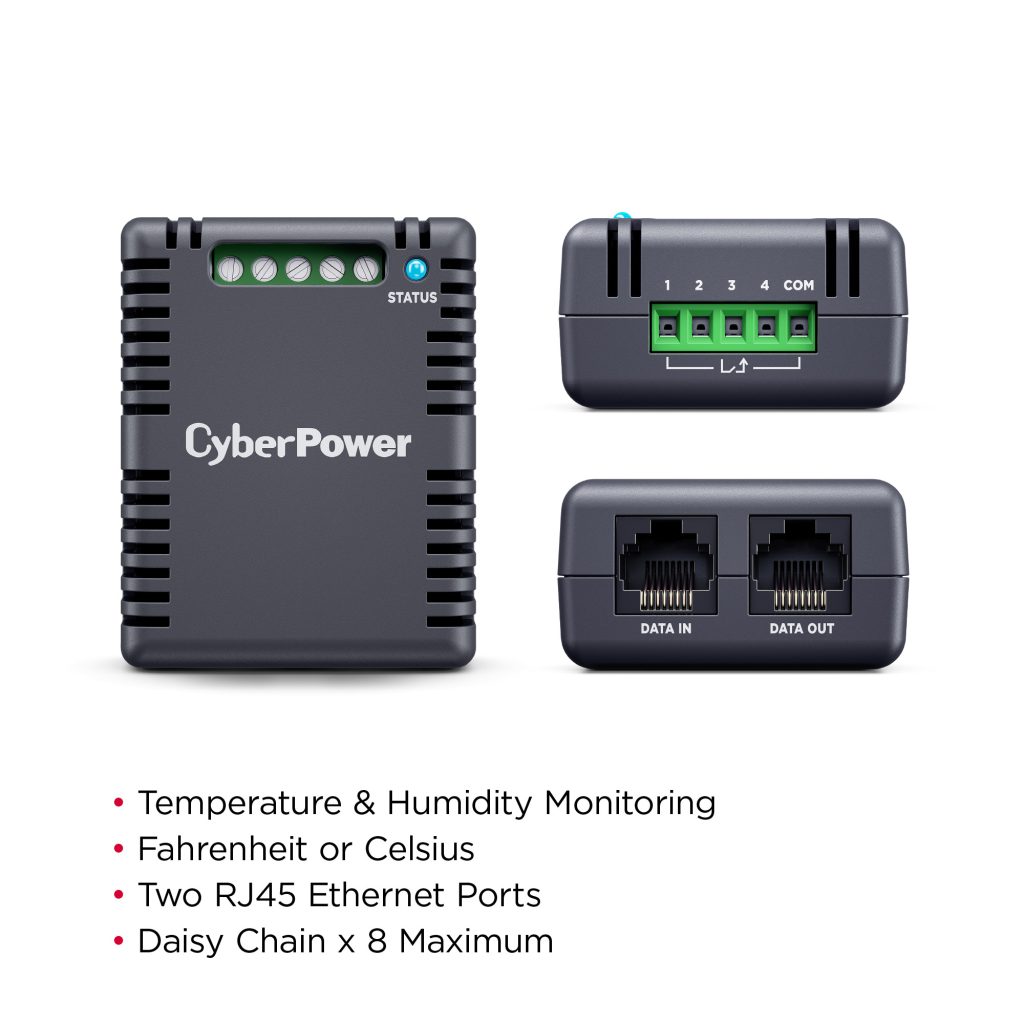

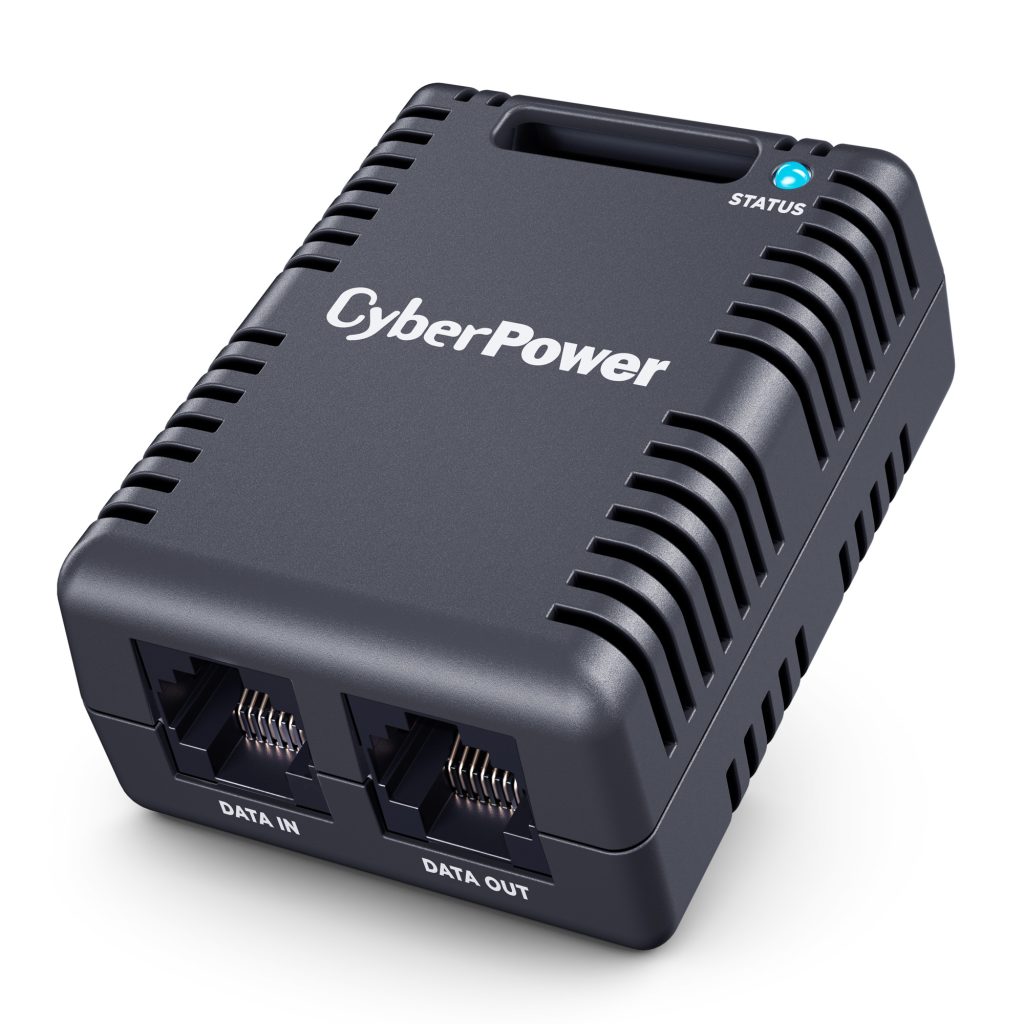

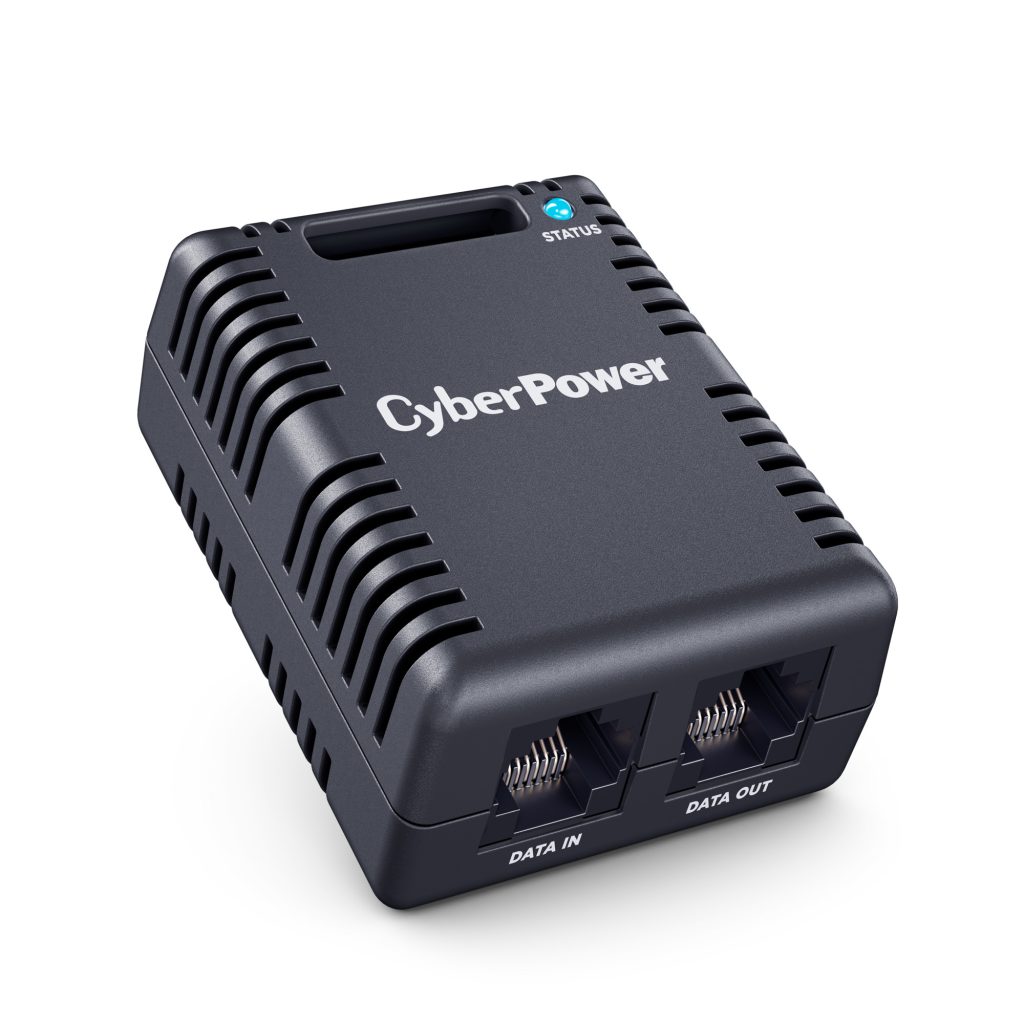

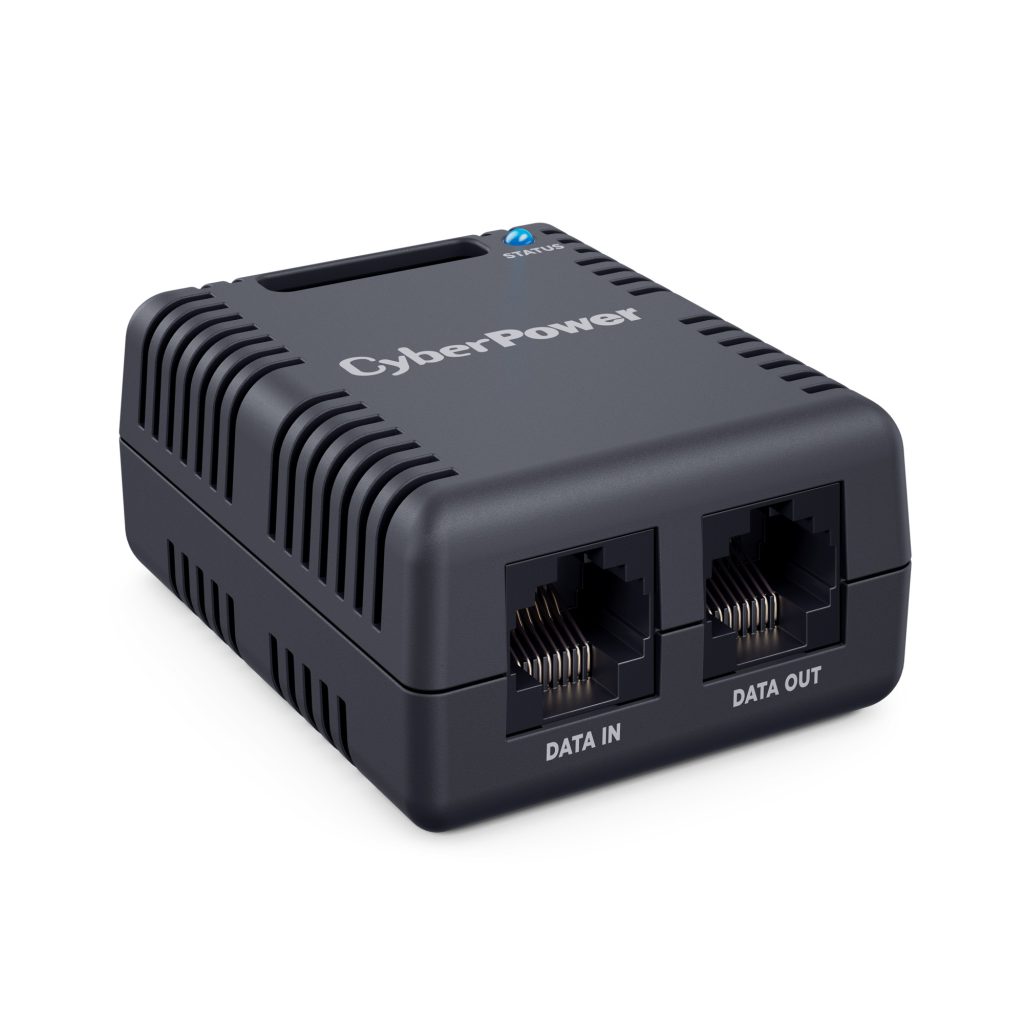

The CyberPower Environmental Sensor (SNEV001) provides for UPS monitoring and management. Its two RJ45 Ethernet Ports allows for a max of 8 units to be daisy chained. Its four input dry contact closures allow users to monitor up to four other connected devices such as door alarms, security switches, and security systems. For real-time temperature and humidity readings of a datacenter, IT closet, or other critical environment, combine the SNEV001 with a CyberPower Remote Management Card, sold separately. Administrators can define temperature parameters in Fahrenheit or Celsius, and rising temperatures will prompt the RMCARD to send a predefined notification. The SNEV001 comes with a three-year warranty.

Product Features
  • Security Monitoring
    Input dry contact closures provide options for monitoring door alarms, security switches, and other security devices.
  • RMCARD/Environmental Sensor Compatibility
    Ensures coordination of information between the CyberPower Environmental Sensor (SNEV001) and the RMCARD
  • Three-Year Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
Compatible Products
Specifications
Expand All
Output
USB Charge Port No
Management & Communications
Dry Contacts Yes
Hardware Connection Port Ethernet (RJ45)
Physical
Color Silver
Dimension – LxWxH (in) 1.14 x 2.64 x 2.09 in
Dimensions
Physical Dimensions – (WxHxD) (cm) 6.6 x 5.08 x 2.79 (cm)
Physical Dimensions – (WxHxD) (in) 2.6 x 2 x 1.1 (in)
Physical Dimensions – (WxHxD) (mm) 66 x 51 x 28 (mm)
Physical Weight (kg) 0.05
Physical Weight (lb) 0.1
Dimensions – Shipping
Shipping – Weight (kg) 0.21
Shipping – Weight (lb) 0.46
Shipping Dimensions – (WxHxD) (cm) 16.76 x 5.84 x 16.51 (cm)
Shipping Dimensions – (WxHxD) (in) 6.6 x 2.3 x 6.5 (in)
Shipping Dimensions – (WxHxD) (mm) 167.64 x 58.42 x 165.1 (mm)
Environmental
Operating Relative Humidity 10 – 90 % ()
Temperature 14 – 158 °F (-10 – 70 °C)
Certifications
Environmental RoHS Compliant
Safety CE
FCC Class B
EAC
Warranty
Extended Warranty Option WEXT5YR-ACC1A
Product Warranty 3 Year Limited Warranty
Downloads

SNEV001

506 KB
824 KB
63 KB
Support

Our Technical Support team will be happy help you with technical questions during business hours.

Our technical support team is available between 6AM and 9PM CST
Monday through Friday
Visit our Support Area
